Side-turning hydraulic truck dumper


With the continuous development of material transportation at home and abroad, major enterprises have continuously put forward higher requirements for the loading and unloading level of materials, so as to cope with the increasing labor costs and the higher requirements of enterprises for economic benefits, safety and environmental protection, and corporate image. Require. Shandong NewPre Intelligent Technology Co., Ltd. gives full play to its advantages in mechanical manufacturing, hydraulic research and electric control design, carefully summarizes the technical characteristics of similar products at home and abroad, and combines its many years of practical experience in manufacturing and on-site service to develop The high-quality PRE-XTQ multi-series hydraulic flap unloader has the characteristics of safety, reliability, easy operation, and greatly improved unloading efficiency. It is widely used in grain and oil storage, port logistics, papermaking, chemical industry, building materials, coal, etc. Industry, has been praised and praised by the majority of users.


Product Usage:

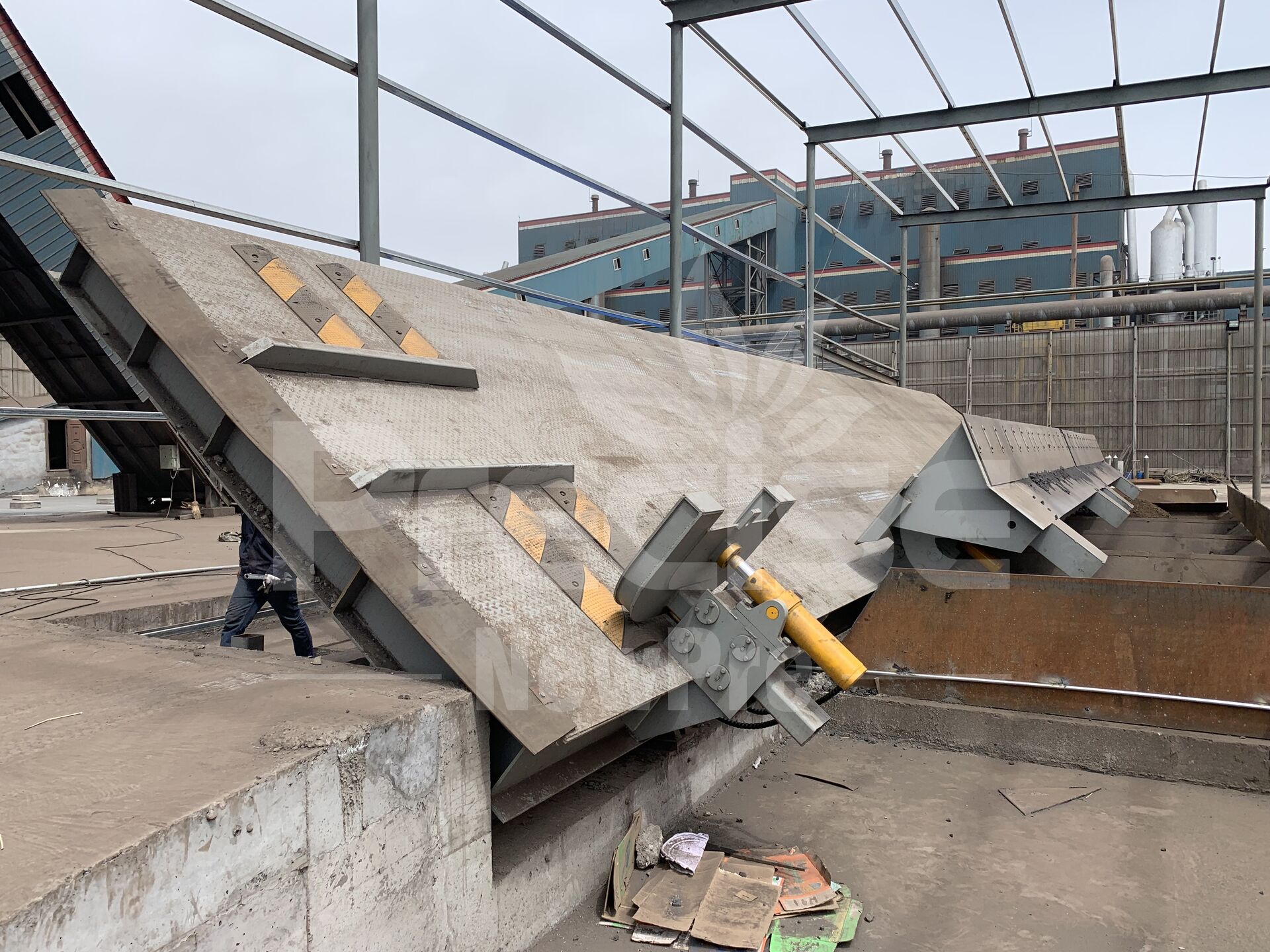

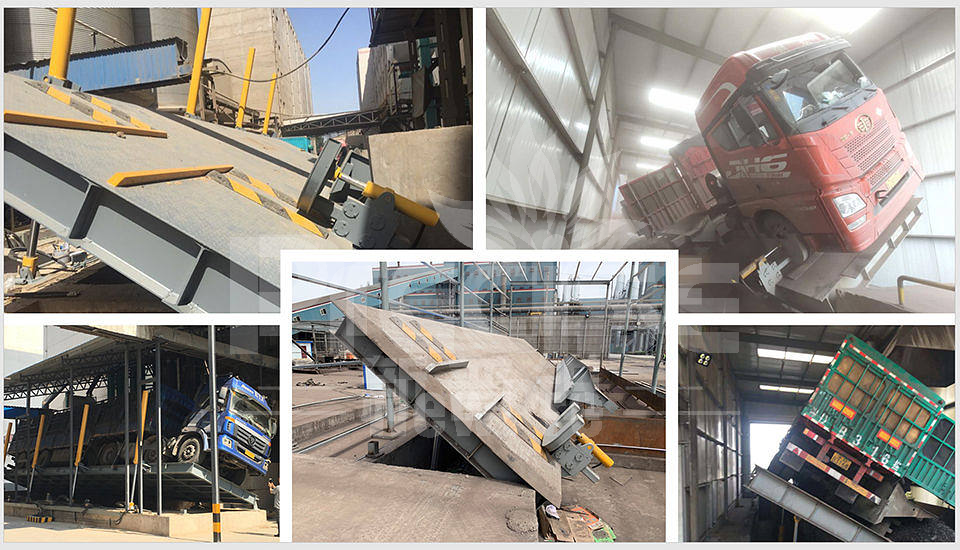

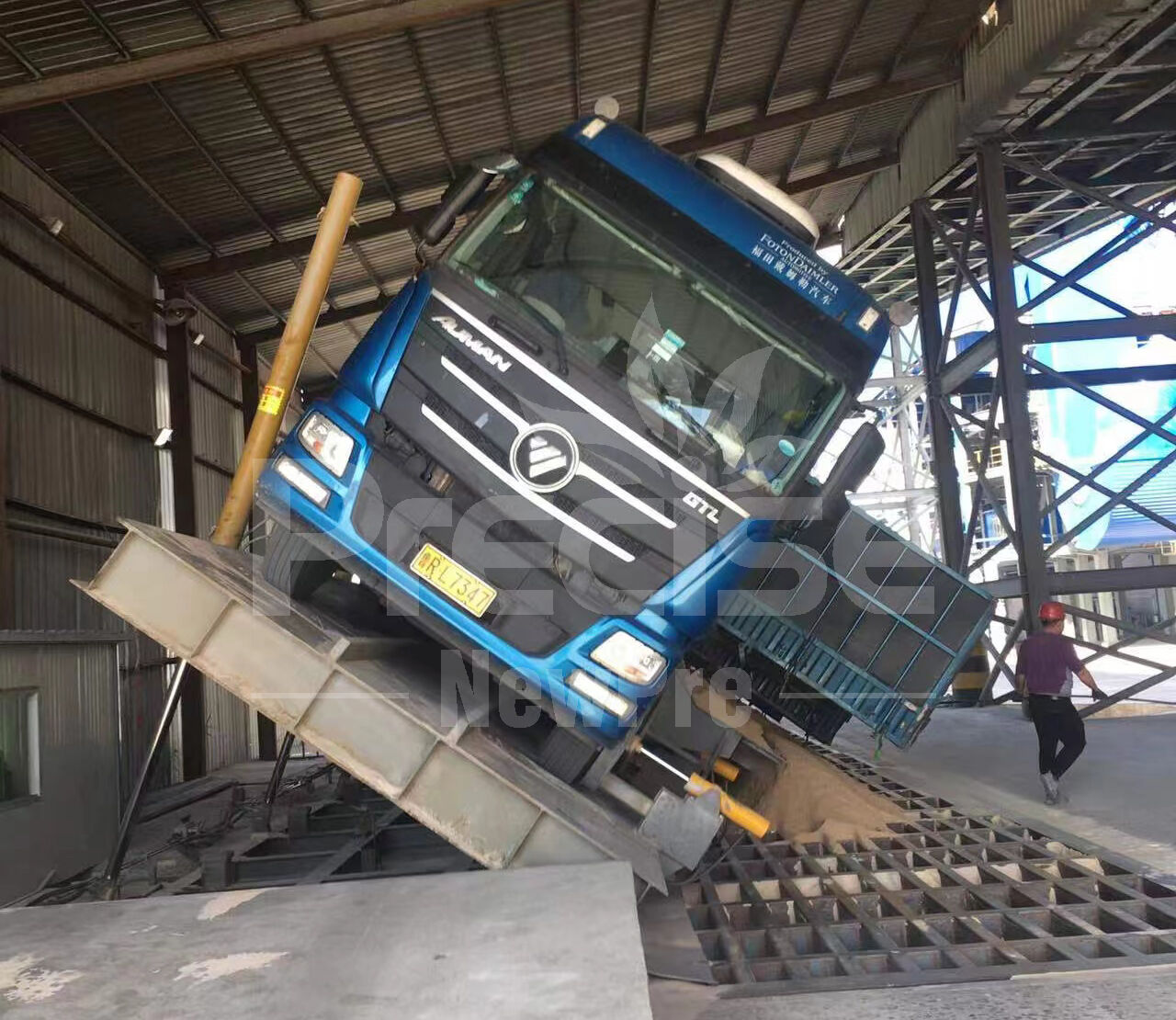

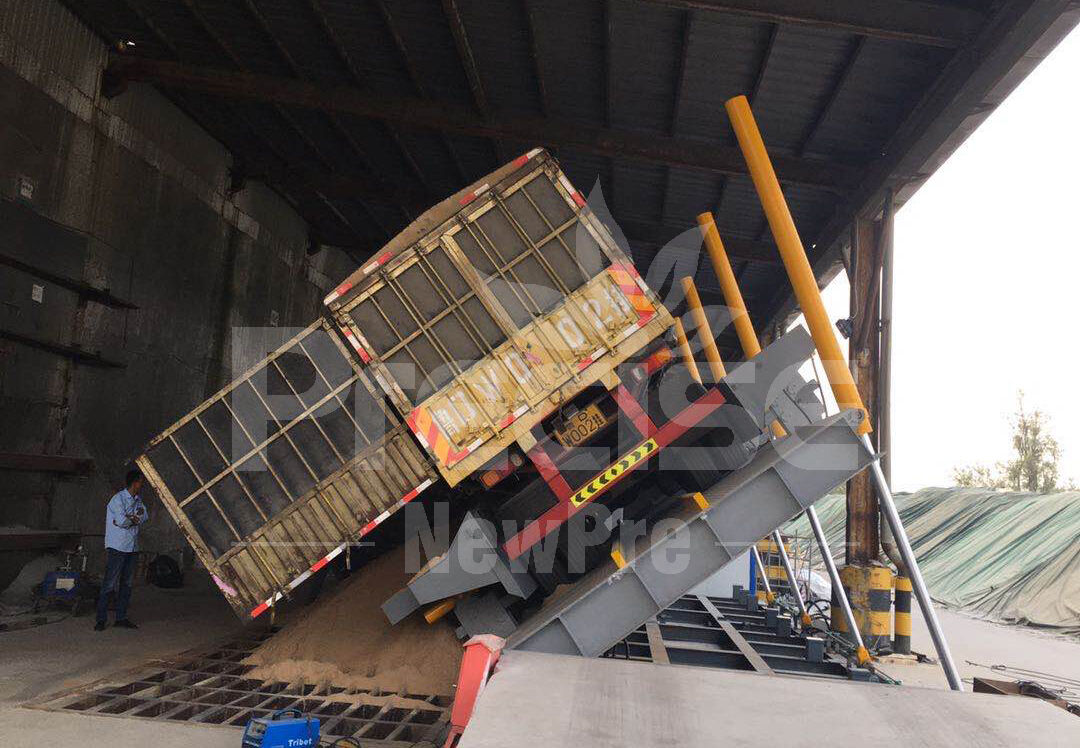

The lifting hydraulic cylinder is arranged on one side of the turnover platform, which can automatically turn over and unload bulk material vehicles on one side. It is mainly used for upgrading and reconstruction of old workshops, where the location is narrow and limited. It is widely used in grain, oil, food , coal, building materials, chemical industry, metallurgy, mining, ports and other units and departments that have bulk material receiving operations.



1. The platform adopts finite element analysis to ensure the safety of high-load and long-term use of the equipment; the main beam is made of high-strength, large-section H-shaped steel, and the panel is made of patterned steel plate; the overall sandblasting is adopted, and high-performance anti-corrosion paint is sprayed. Strong focus, good anti-corrosion and anti-rust effects.

2. Install a dust-proof material guide assembly on the side where the platform connects with the unloading pit to prevent materials and dust from falling into the foundation pit and guide the materials into the receiving pit.

3. The number of platform lifting hydraulic cylinders is large, and its own rigidity is synchronous, coupled with synchronous valve control, which greatly improves the stability of the system. The load sensing technology and constant pressure variable technology are adopted to reduce the calorific value of the hydraulic system, save energy and reduce consumption, reduce system noise and improve the working environment.

4. The hydraulic system has an automatic heating function, which is suitable for use in the severe cold regions in northern winter.


Technical Parameters:

Product numberTable size (length x width)Maximum Lifting WeightMaximum Lifting AngleStructure formation
PRE-XTQC5012×3.2(m)/14×3.2(m)50t35°/45°shallow foundation pit / deep foundation pit
PRE-XTQC6012×3.2(m)/14×3.2(m)60t35°/45°shallow foundation pit / deep foundation pit
PRE-XTQC8016×3.2(m)/18×3.2(m)80t35°/45°shallow foundation pit / deep foundation pit
PRE-XTQC10016×3.2(m)/18×3.2(m)100t35°/45°shallow foundation pit / deep foundation pit

Note: The size and tonnage of the table can be customized according to the actual needs of the user!

Safety assurance measures:

1. The hydraulic control system is designed with an emergency manual fall function. When the system is unexpectedly powered off, the hydraulic flap will stop working and stay in the current state. With the manual playback function, the hydraulic flap will slowly descend to the initial position, ensuring the safety of personnel, equipment and vehicles.

2. In terms of the electronic control system, the movement of the retaining wheel mechanism and the lifting movement of the flap are interlocked to prevent misoperation and prevent safety accidents.

3. One side of the platform is equipped with a stop wheel mechanism , and the other side is equipped with a safety locking device to prevent the vehicle from overturning accidentally!
