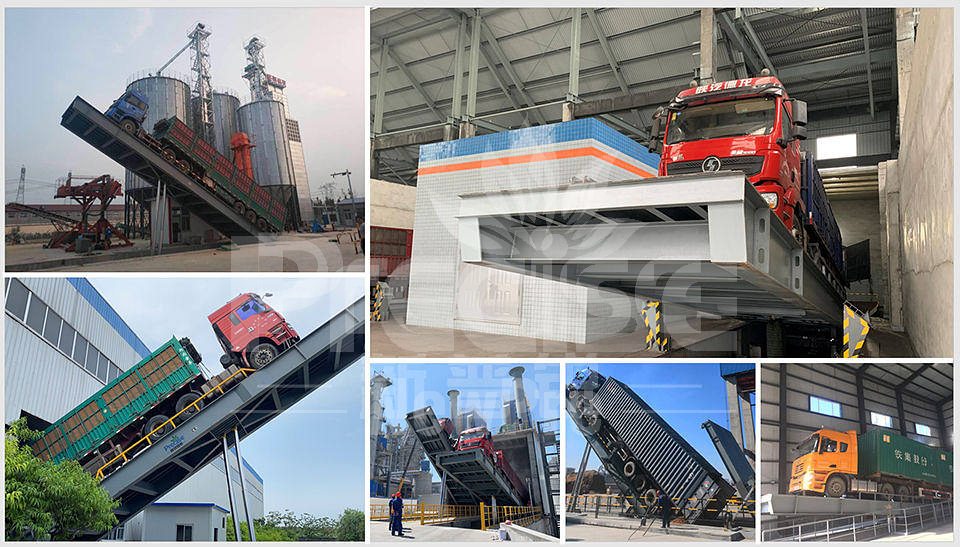

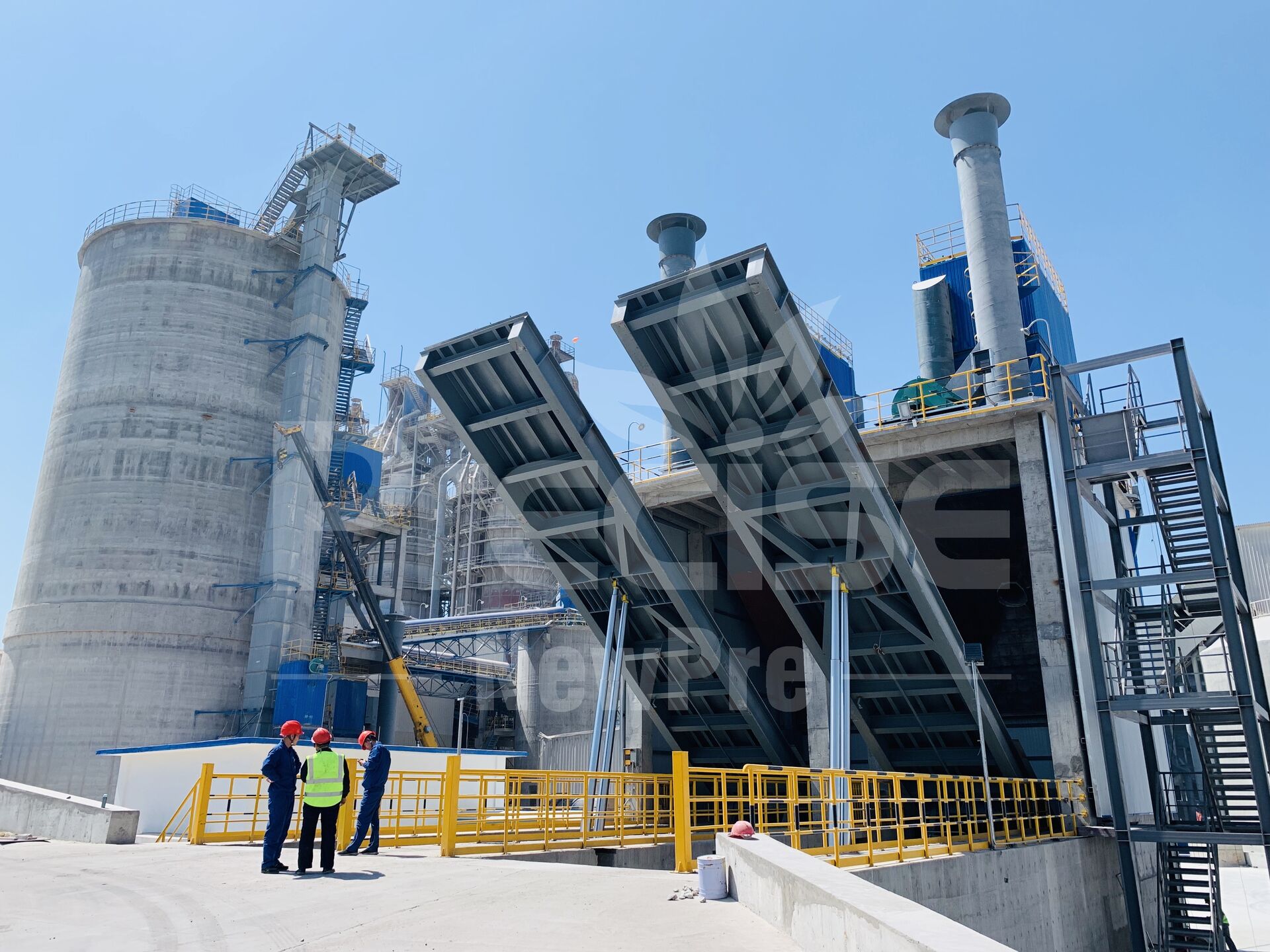

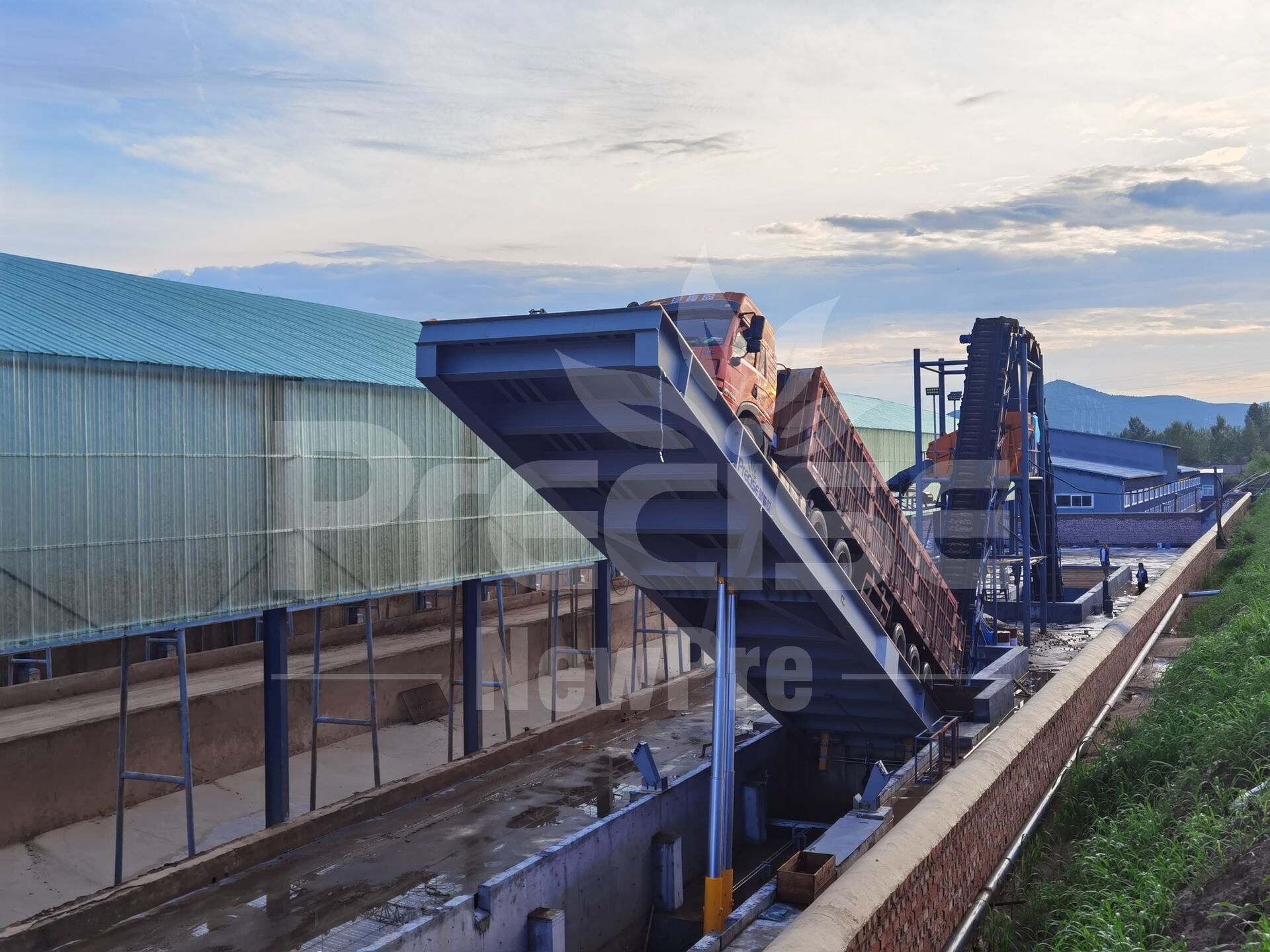

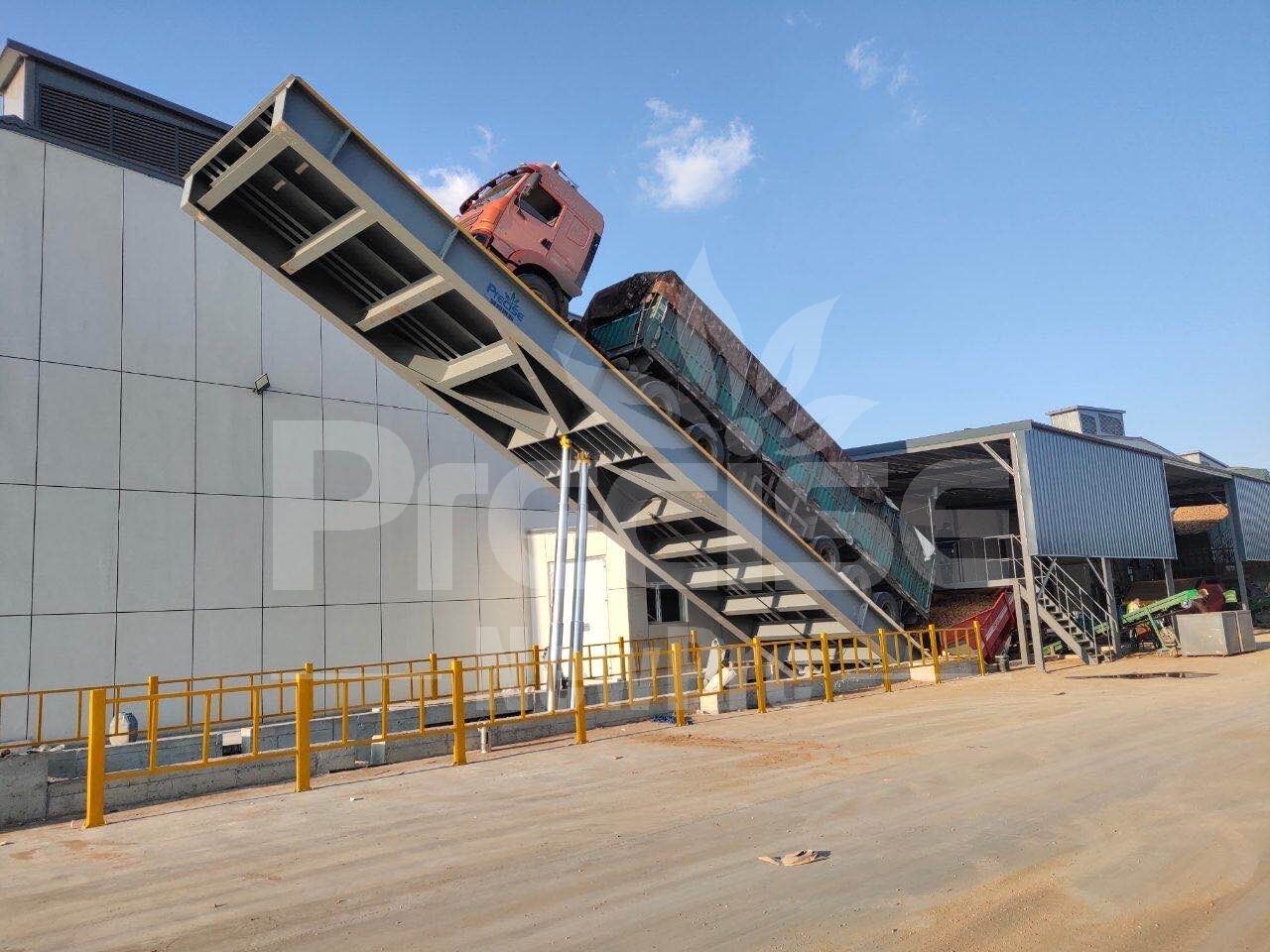

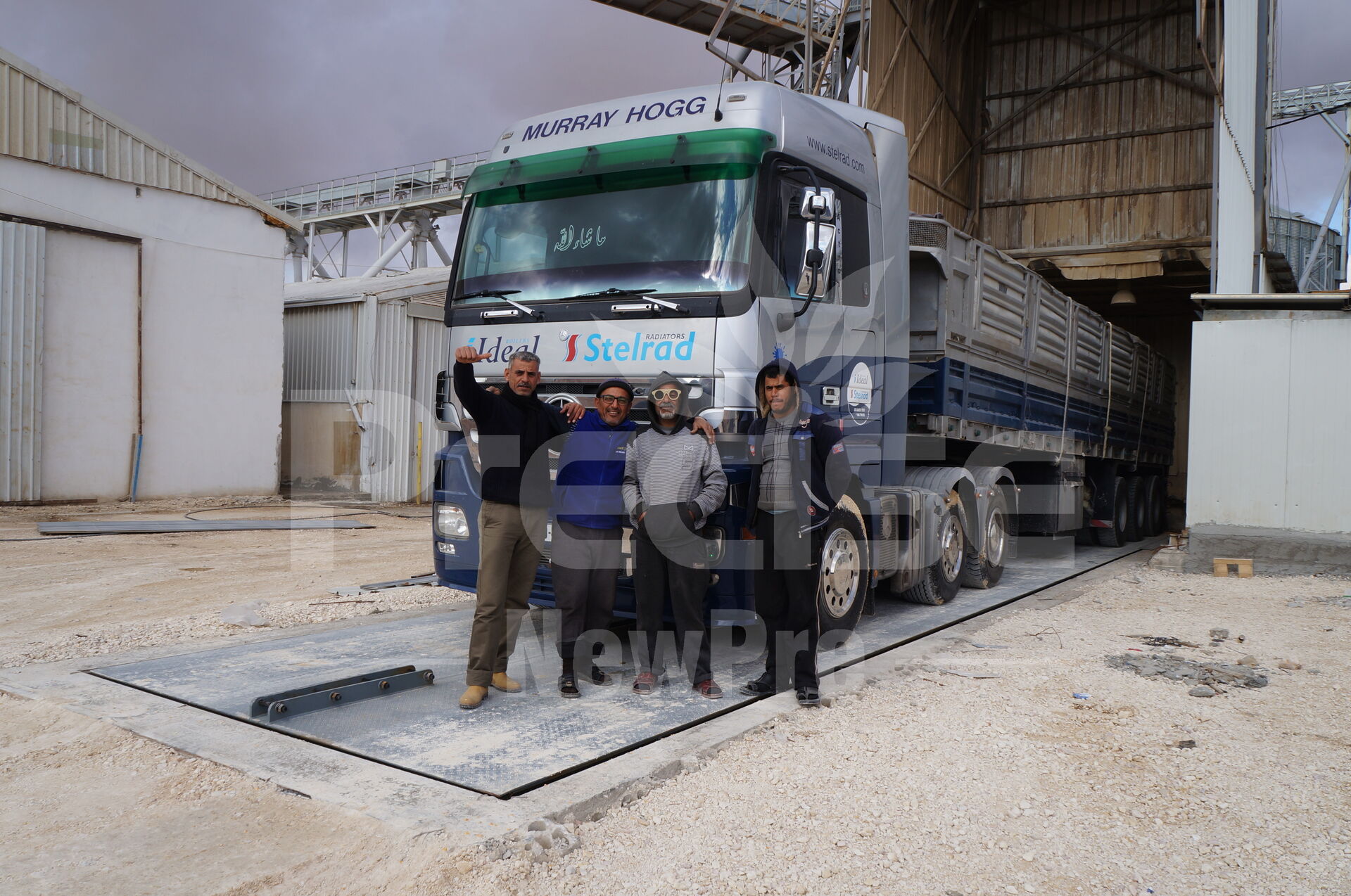

Bottom support hydraulic truck dumper

Summary:

With the continuous development of material transportation at home and abroad, major enterprises have continuously put forward higher requirements for the loading and unloading level of materials, so as to cope with the increasing labor costs and the higher requirements of enterprises for economic benefits, safety and environmental protection, and corporate image. Require. Shandong NewPre Intelligent Technology Co., Ltd. gives full play to its advantages in mechanical manufacturing, hydraulic research and electric control design, carefully summarizes the technical characteristics of similar products at home and abroad, and combines its many years of practical experience in manufacturing and on-site service to develop The high-quality PRE-XTQ multi-series hydraulic flap unloader has the characteristics of safety, reliability, easy operation, and greatly improved unloading efficiency. It is widely used in grain and oil storage, port logistics, papermaking, chemical industry, building materials, coal, etc. Industry, has been praised and praised by the majority of users.

CONTACT US TO LEARN MORE

Product Usage:

The main hydraulic cylinder of this series of products is arranged at the bottom of the truck dumper platform, which reduces the space occupied by the herringbone frame of the double-sided support products, and is mainly used in the relatively narrow construction area of the equipment foundation. It is widely used in grain, oil, food, coal, building materials, chemical industry, metallurgy, mining, ports and other units and departments that have bulk material receiving operations.


Features:

1. The platform adopts finite element analysis to ensure the safety of high-load and long-term use of the equipment; the main beam is made of high-strength, large-section H-shaped steel, and the panel is made of patterned steel plate; the overall sandblasting is adopted, and high-performance anti-corrosion paint is sprayed. Strong focus, good anti-corrosion and anti-rust effects.

2. Install dust-proof material guide components at the rear of both sides of the platform and the rear of the platform to prevent materials and dust from falling into the foundation pit and guide materials into the receiving pit.

3. Due to the front and rear arrangement of the platform lifting hydraulic cylinders, the control system does not need to consider the synchronization of the hydraulic cylinders, which completely eliminates the potential safety hazard caused by "asynchronous hydraulic cylinders on both sides", and greatly improves the stability of the system.

4. The hydraulic control system is designed by professional hydraulic technicians and has an automatic heating function; it adopts a large-volume suction and return oil separation structure oil tank, which is suitable for hydraulic oil overflow and heat dissipation, reduces the number of hydraulic oil cycles, and ensures the long-term stability of the hydraulic system reliable operation;

5. The entire system has a reasonable layout and reliable performance. It adopts a large number of advanced hydraulic control technologies at home and abroad, and is suitable for use in harsh environments such as high and low temperature, and large dust. It uses well-known brand components at home and abroad.


Technical Parameters:


Product numberTable size (length x width)Maximum Lifting WeightMaximum Lifting AngleStructure formation
PRE-XTQ3012×3(m)30t45°/ 60 °back flip, bottom support
PRE-XTQ6012×3(m) / 14×3(m)60t45°/ 60 °back flip, bottom support
PRE-XTQ8016×3(m) / 18×3(m)80t45°/ 60 °back flip, bottom support
PRE-XTQ10016×3(m) / 18×3(m)100t45°/ 60 °back flip, bottom support


Note: The size and tonnage of the table can be customized according to the actual needs of the user!



Safety assurance measures:

1. The hydraulic control system is designed with an emergency manual fall function. When the system is unexpectedly powered off, the hydraulic flap will stop working and stay in the current state. With the manual playback function, the hydraulic flap will slowly descend to the initial position, ensuring the safety of personnel, equipment and vehicles.

2. An explosion-proof valve is used at the bottom of the oil cylinder to prevent accidents caused by oil pipe bursting.

3. In terms of the electronic control system, the action of the retaining wheel mechanism and the lifting action of the flap are interlocked to prevent misoperation and prevent safety accidents.

4. The platform is equipped with a special safety chain to prevent the vehicle from sliding down unexpectedly!
